Specifications

• expand_lessOverview

  Model code	LH202-REMDE-A1
  Drive	4x2
  Transmission	Manual
  Speed	5
  Front suspension	Double wishbone
  Rear suspension	Leaf
  Front brakes	Disc
  Rear brakes	Drum
  Number of doors	4
  Seat material	Fabric
  Colour	White

• expand_lessEngine & Chassis

  Engine model	5L-E
  Displacement	2986
  Number of cylinders	4
  Maximum power (kw/rpm)	70/4000
  Maximum power (bhp/rpm):	94/4000
  Maximum torque (Nm/rpm)	197/2400
  Electrics (volts)	12
  Fuel Type	Diesel
  Fuel tank capacity (Litres)	70

  Engine related standard features

  120 amp alternator (12v)	Power steering
  Battery: 85D26 x2 (55A/Hx2)	Semi-floating rear axle
  Cold area package	Severe usage package
  Cyclone and pre-cleaner type air cleaner

• expand_lessSeating arrangement


  Number of seats	3
  Front seating arrangement	1+2
  Front seating type	Bench

• expand_lessWeights & Dimensions

  Weights (kg)
  Kerb weight	1790
  Gross Vehicle Weight	3000
  Payload	1210

  Dimensions (mm)
  Length	4695
  Width	1695
  Height	1980
  Wheelbase	2570
  Ground clearance	180

• expand_lessTyres

  Front tyres	195R15C 8PR
  Rear tyres	195R15C 8PR
  Tyre type	Radial

• expand_lessInterior features

  Air cooler: (A/C=cooler+heater) FR+RR(two-tier register)	Headrests: front (D+P)
  Ashtray	Interior lights
  Assist grips - front & rear	Interior rear view mirror (day and night)
  Brake fluid level warning	Parking brake warning light
  Cigarette lighter	Pre-wiring for audio with 2 speakers and antenna
  Clock: digital	Rear window defogger
  Dashboard-mounted gear lever	Seat belts: front x 3 (2 x 3 point & 1 x 2 point)
  Door pockets: front doors	Seat belts: rear x 11 (2 point)
  Front door armrests x 2	Speedometer km/h
  Fuel gauge	Sun visors D&P
  Fuel level warning light	Timing belt replacement warning light

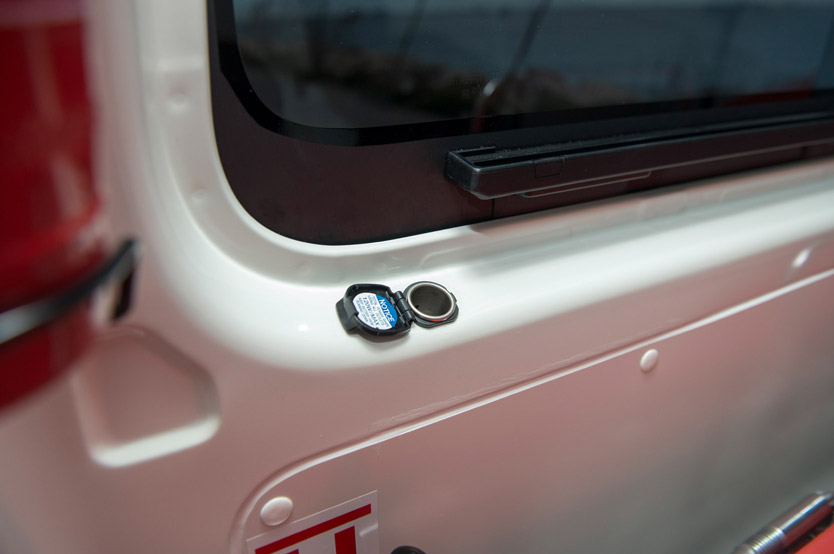

  Fuel lid opener switch (no key)	Trip Meter
  Fuel sedimenter warning	Vinyl floor covering
  Glove box: w/o lock	Water temperature gauge

• expand_lessExterior features

  Bumper: front & rear	Outside rear view mirror - door
  Front stabiliser bar	Rear window wiper - w/washer
  High mount stop lamp	Semi-sealed halogen headlamps
  High/Low 2-speed windshield wipers(intermittent/washer lnk)	Sliding side passenger door
  Lift-up type back door	Towing: front only (eye)
  Mud guards: front & rear	Windshield - green laminated

• expand_lessSafety and Security

  Air Bag System: D+P(driver and passenger)

  Central door locking - (FR:SLIDE:BACK) D+P side key linked

• expand_lessMiscellaneous

  Owner's manual - English

  Tool Kit & Jack
